ENGEL at Plast India 2023

08.12.2022

All-electric injection moulding machines combine maximum precision with low energy consumption. At Plast India 2023 from February 1 to 5 in Delhi, India, injection moulding machine manufacturer and system solution provider ENGEL will be demonstrating how the benefits of all-electric injection moulding machines can be leveraged in a cost-efficient way.

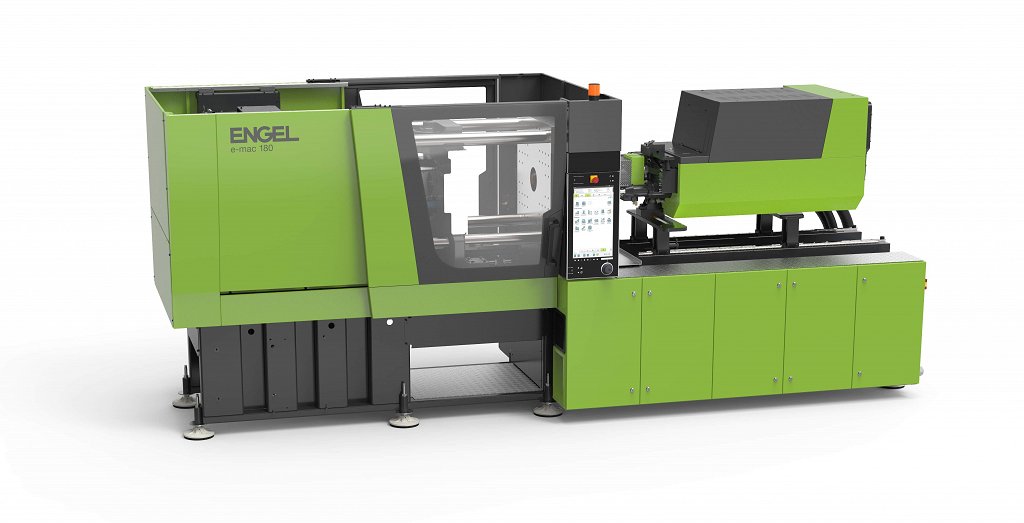

2022-12-plast-india-2023-1All-electric e-mac injection moulding machines perform to the max, combining minimal energy consumption with maximum precision and productivity per unit of area.

By manufacturing flip-top caps and closures from a 32-cavity mould using an e-mac 1340/280 injection moulding machine, ENGEL will clearly illustrate the huge potential of all-electric injection moulding machines from its stand at the trade event. Flip-top caps and closures are used for numerous products in the cosmetics and food industries, including shampoo, shower gel, vinegar and ketchup. To ensure bottles and tubes maintain secure closing over long periods of frequent usage, the demands on precision moulding are particularly high in the production of caps and closures. Very precise injection and constant movements of the mould platens during opening and closing are critical. For this reason, all-electric injection moulding machines are often the first choice for this product segment. In the packaging industry especially, cost-effectiveness is all-important.

In the e-mac, ENGEL offers an all-electric injection moulding machine that combines high power and energy efficiency with an extremely compact machine design for comparatively little capital outlay. The machine is tailored to the needs of the medium performance segment, which features cycle times of more than four seconds.

Maximising overall efficiency

All movements of the ENGEL e-mac – including the nozzle movement and ejection – are performed by servo-electric drives. This means that the machine achieves very high overall efficiency. If required, a servo-hydraulic unit can be integrated into the machine frame without requiring additional space.

The ENGEL e-mac injection unit was developed from scratch with a focus on even better dynamics. It is available in three performance classes to ensure the machine can adapt to precise requirements while maximising overall efficiency.

Across the whole series, e-mac machines of the latest generation are some of the most compact in the world in their respective performance segments when compared against other all-electric injection moulding machines on the market. Thanks to optimised toggle lever geometry, the machines are shorter than previous versions - without reducing the opening stroke. This guarantees a high productivity per unit of area – an increasingly important indicator of efficiency for many businesses.

Smart assistance boosts process consistency

Injection moulding machines in the e-mac series promise ample flexibility when it comes to the integration of smart assistance systems. Alongside precise electrical axes, iQ systems from ENGEL enhance process stability and product quality by ensuring ideal process settings from one cycle to the next.

For example, iQ weight control analyses the pressure profile during the injection process and compares measured values by means of a reference cycle. The injection profile, switchover point and the holding pressure profile are adjusted to the current conditions for every cycle, which keeps the injected volume constant during the entire production run. In this way, consistently high product quality is achieved. Rejects are proactively prevented, saving raw materials and energy.

Potential is particularly strong in the processing of recycled materials, which are naturally subject to greater batch fluctuations than new materials. Smart assistance systems are thereby actively supporting the circular economy. Processed plastic waste can also be used in higher-value applications with the help of smart assistance.

For precision applications with cycle times of over four seconds, the e-mac is the solution with the greatest overall efficiency for many applications in the field of all-electric injection moulding machines. Beyond the packaging industry, the e-mac is used in the technical moulding, teletronics and medical technology sectors, among others.

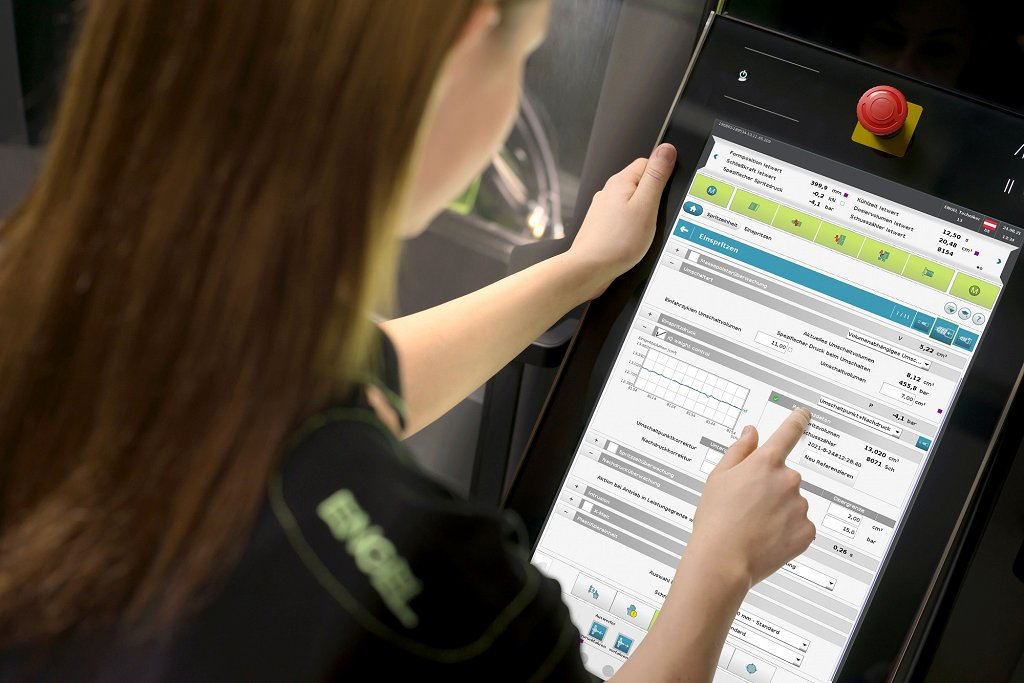

2022-12-plast-india-2023-2iQ weight control compensates for process fluctuations before rejects are produced. The huge potential of digitalisation in terms of greater efficiency and higher quality will be demonstrated at the ENGEL stand.

Local partners cutting time to market

Founded in 1945, ENGEL has steadily developed over the course of its history from a manufacturer of injection moulding machines to a system expert. As a single source supplier, the family-owned company provides turnkey production cells for sophisticated applications that not only include the injection moulding machines, but also the automation, process technology and Industry 4.0 technologies. Alongside injection moulding machines, the company’s development and production divisions create various types of robot, process technologies and digital solutions. ENGEL integrates other systems in collaboration with contracting partners and has built up a global network of partners to this end.

At Plast India, ENGEL will cooperate with Piovan on the peripheral systems. Just like ENGEL, Piovan maintains a strong local presence in India. The 32-cavity mould for the manufacture of flip-top caps and closures will be from Vasantha, a company based in Hyderabad. ENGEL clients around the world benefit from these close working relationships with local partners. Regional networks ensure short communication paths, fast times to market and more attractive prices for integrated system solutions.

ENGEL at Plast India 2023: Hall 7, stand FP-F-01

Photos: Engel

For more information, please visit: www.engelglobal.com
