LVD showcases full-featured tube laser cutting machine

21.04.2022

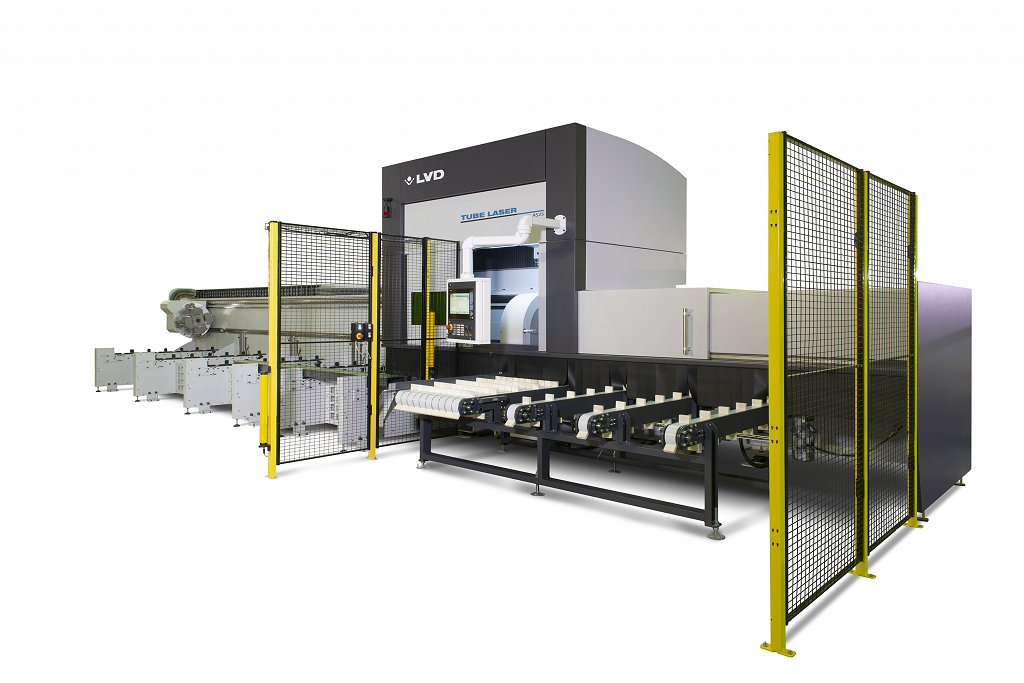

LVD showcases the TL 8525, the most advanced tube laser cutting machine in its TL series at Tube 2022, Hall 6 – Stand E31.

The TL 8525 opens the door to a world of versatile tube and profile processing with optimized features, including 45-degree 3D tilt-axis cutting head, 6-position front loader, wide X-axis cutting range, and the ability to cut tubes up to 8500 mm long, at a maximum part length of 3000 mm, up to 250 mm diameter.

VERSATILE TUBE & PROFILE PROCESSING
The TL 8525 is built for high productivity. It can accommodate a broad range of applications, complex, large and heavy tubes. The 400 mm Z-axis efficiently handles processing of larger profiles.

The machine maintains the compact footprint of other TL models and offers the advantage of accessibility on all sides. Because loading and unloading is handled on one side, the machine can fit in a small space or against a wall.

OPTIMIZED FEATURES
To provide the widest range of use, the TL 8525 is equipped with key features as standard:

• 45-degree 3D tilt cutting head delivers high-precision bevel cutting and can be used for weld-preparation cuts in thick-walled tubes.
• 6-position front loader loads up to six tubes and offers six positions for up to 250 mm tubes. The system can be loaded with different types of tubes in different sizes and can be interrupted during processing to add a new tube to handle both small batch and long-run production.
• 1190 mm X-axis cutting head range permits processing along a greater length of the tube, wasting less material to make tube cutting more productive and profitable.
• Automatic tube loading, automatic tube centering and automatic set up and adjustment of the chuck and steady rest offer highly automated, reliable operation.

The TL 8525 comes equipped with a 2-kW fiber laser source; 4-kW laser is optional.
