Highly efficient for thin-walled containers

14.01.2022

• Thin Wall Integra: Collaborative project with new approach to the production of thin-walled packaging
• Cooperation: Mould makers, robotics and IML label manufacturers, material flow specialists, raw material suppliers and Arburg France
• Fully automated: Injection moulding cell with hybrid Allrounder 720 H in packaging version

How do you economically produce thin-walled containers using top-quality recycled material and with maximum output? By having several specialists combine their well-founded expertise. This is what has happened in France as part of the Thin Wall Integra collaborative project. The collaboration pursues several objectives simultaneously, namely the high-volume processing of recycled material into thin-walled containers in a way that is fully automated, fast, and of a consistently high quality.

Arburg’s subsidiary in France has teamed up with Collomb, a mould maker specialising in thin-walled containers, Pagès Group, a robotics expert for packaging, Verstraete, an IML label manufacturer, Koch-Technik, a material flow specialist, and Borealis, a raw materials supplier, to present Thin Wall Integra as a new one-stop shop concept for the production of thin-walled five-litre buckets.

ARBURG 179263_Packaging_GruppeThe team of the Thin Wall Integra collaborative project.

Jointly developed concept

The jointly developed concept is based on a fully automated injection moulding cell around a hybrid Allrounder 720 H in packaging version with a 1-cavity mould. The complete cycle only takes around five seconds. In addition to the injection moulding machine optimised for fast cycles, the sequentially operating robotic system is also a top performer. The handling system with telescopic arm that engages from the rear side of the machine first loads the mould with the IML labels. The robotic system then removes the labelled buckets and stacks them on a deposit mat. The stacks are then automatically picked up by a robot for palletising. The two robot technologies used make the system particularly compact. The recyclate is continuously fed in via an automatic conveyor system.

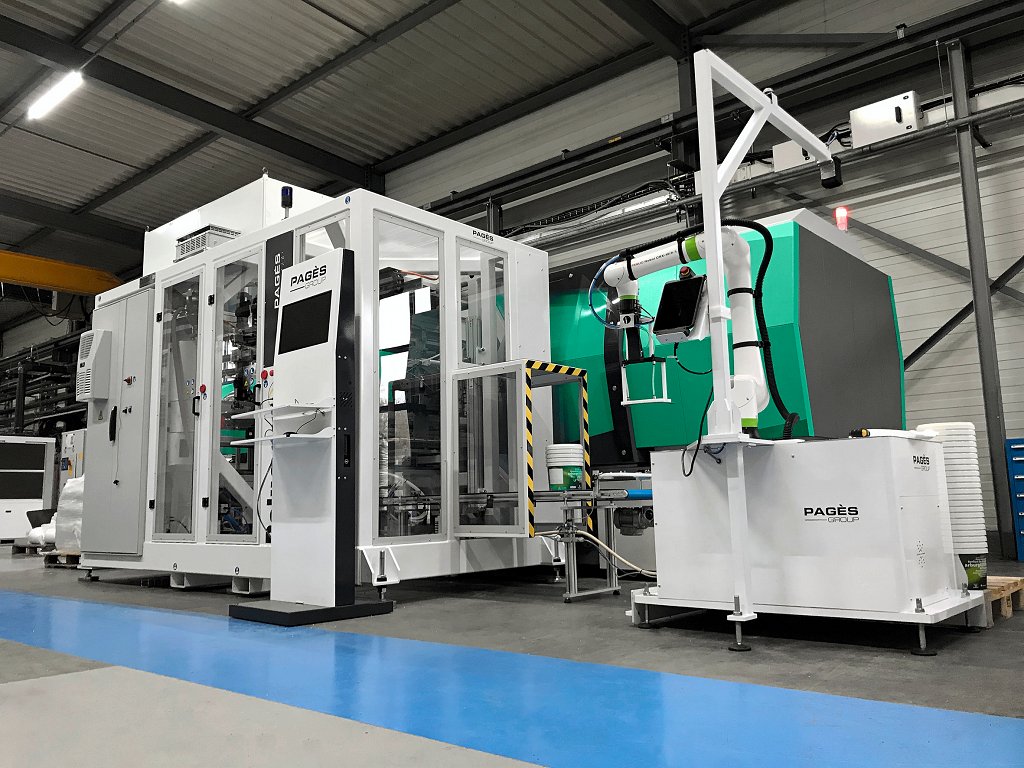

ARBURG 179261_Packaging_AnlageFully automated injection moulding cell around a hybrid Allrounder 720 H in packaging version.

Strengths of the collaborative partnership

The Thin Wall Integra partners contribute their specific expertise at every stage of the project to demonstrate state-of-the-art technology to manufacturers of thin-walled containers, while also ensuring the necessary quality and meeting the tight deadlines of the packaging industry.

In addition, the joint project is in line with the ecological aspects of plastics processing that are so important today. The product has a proportion of 55 per cent recycled material, and its ‘ecological design’ enables material savings of up to 35 per cent. Added to this are the simplified stackability of the buckets and the use of ‘HolyGrail 2.0’ labels, which make it easy to recycle the materials used by type.

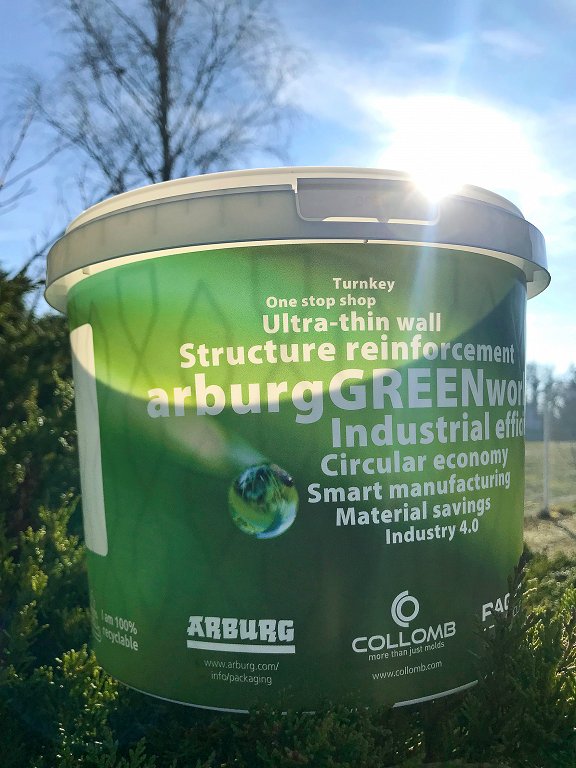

ARBURG 179262_Packaging_BecherThe ‘ecological design’ enables material savings of up to 35 per cent.

The fully automated project system is specifically designed for high-performance packaging applications that require speed, precision and efficiency, as well as ease of maintenance. After its premiere on 30 November, the Thin Wall Integra project is also be on show during an open day at Collomb in Oyonnax on 12 January 2022.

Photos: Christophe Brissiaud, Collomb Mécanique
