NEW from Meusburger: infinitely adjustable infeed guide

07.11.2016

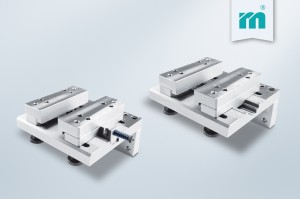

Two variants of modular design infeed guides are now available at Meusburger. These are characterised by infinite width adjustment and offered in three different heights. The different adjustment options of strip width and strip lift allow for a flexible use on different stamping dies.

Two variants of modular design infeed guides are now available at Meusburger. These are characterised by infinite width adjustment and offered in three different heights. The different adjustment options of strip width and strip lift allow for a flexible use on different stamping dies.



The E 5620 Infeed guide, with its spring-loaded bearing on one side, allows a free of play guiding for widths of 18 to 82 mm. The spring force can be optimally adjusted by means of system compression springs. Three springs in different thicknesses are included in the delivery. With the E 5622 Infeed guide the strip is pre-centred and led through four needle roller bearings arranged in opposite pairs. The guiding rails are infinitely adjustable for strip widths in the range of 18 to 82 mm as with E 5620. A perfect match for this product is Meusburger's E 56204 Mounting flange which can be easily fixed to, and removed from, the front end of the tool. Both infeed guide variants including accessories are available from stock in the usual high quality.

Further information: www.meusburger.com
